GIGABYTE Geforce 7900 GS - GPU G71

Last Update: January 31, 2007


» Back To GPU Database



[ Index ]

Introduction | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10

»Next Page







5 - 7900 GS: Features / GPU Info


GPUG71
DesignationGV-NX79G256DP-RH
Transistors Count278 million
Manufacturing Process90 nm
nVidia Ref Default Core Clock450 MHz
nVidia Ref Default Memory Clock660 MHz DDR or 1320 MHz
Gigabyte 7900GS Default Core Clock525 MHz
Gigabyte 7900GS Default Memory Clock720 MHz DDR or 1440 MHz
Memory TypeGDDR3
Memory Size256M
Memory Interface256 bits
Vertex Pipelines7
Pixel Pipelines20
ROPs16
Vertex Shader Model3.0
Pixel Shader Model3.0
Texture Units16
Texture Max Size4096x4096
Max Anisotropic Value16.0
FSAA2X / 4X / 6X / 8X
SlotPCI-Express


RivaTuner Report:


$ffffffffff ----------------------------------------------------------------
$ffffffffff Display adapter information
$ffffffffff ----------------------------------------------------------------
$0000000000 Description               : NVIDIA GeForce 7900 GS (NGOHQ.com)
$0000000001 Vendor ID                 : 10de (NVIDIA)
$0000000002 Device ID                 : 0292
$0000000003 Location                  : bus 7, device 0, function 0
$0000000004 Bus type                  : PCIE
$000000000f PCIE link width           : 16x supported, 16x selected
$0000000009 Base address 0            : fd000000 (memory range)
$000000000a Base address 1            : d0000000 (memory range)
$000000000b Base address 2            : none
$000000000c Base address 3            : fc000000 (memory range)
$000000000d Base address 4            : none
$000000000e Base address 5            : 0000ec00 (I/O range)

$ffffffffff ----------------------------------------------------------------
$ffffffffff NVIDIA specific display adapter information
$ffffffffff ----------------------------------------------------------------
$0100000000 Graphics core             : NV49/G71 revision A2 (20pp,7vp)
$0100000001 Hardwired ID              : 0290 (ROM strapped to 0292)
$0100000002 Memory bus                : 256-bit
$0100000003 Memory type               : DDR3 (RAM configuration 06)
$0100000004 Memory amount             : 262144KB
$0100000100 Core clock domain 0       : 546.750MHz
$0100000101 Core clock domain 1       : 526.500MHz
$0100000102 Core clock domain 2       : 526.500MHz
$0100000006 Memory clock              : 720.000MHz (1440.000MHz effective)
$0100000007 Reference clock           : 27.000MHz

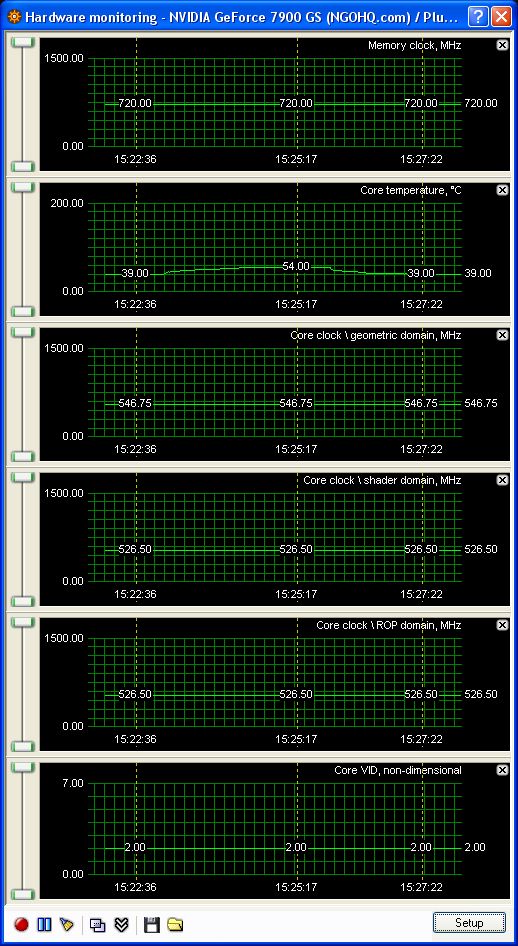

Here is the parameters evolution during the running of the Soft Shadows Benchmark in windowed stability mode:

GIGABYTE NVIDIA Geforce 7900GS

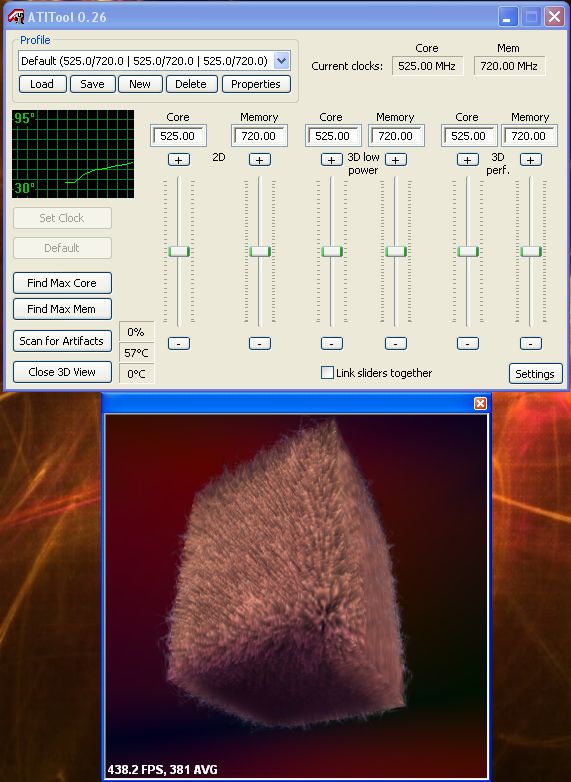

ATITool:

  • Core Clock: 525MHz
  • Memory Clock: 720MHz
GIGABYTE NVIDIA Geforce 7900GS

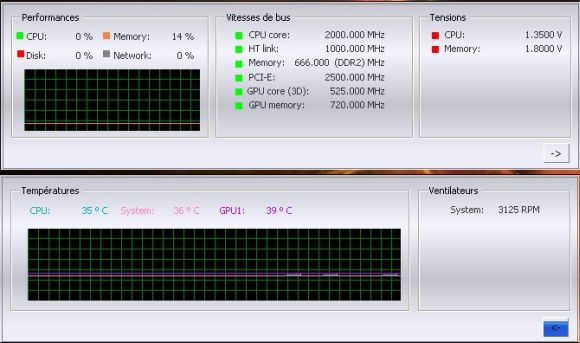

NVIDIA nTune:

GIGABYTE NVIDIA Geforce 7900GS
