GIGABYTE NVIDIA GeForce 7600 GS - GPU G73

Last Update: March 03, 2007


» Back To GPU Database



[ Index ]

Introduction | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13

�Next Page







5 - 7600 GS: Features / GPU Info


GPUG73
DesignationGV-NX76G256D-RH
Transistors Count177 million
Manufacturing Process90 nm
GPU Frequency450 MHz
Memory Frequency398 MHz
Memory TypeGDDR2
Memory Interface128 bits
Memory Size256Mb
Shader Model Version3.0
OpenGL Version2.0
Direct3D Version9.0
Vertex Pipelines5
Pixel Pipelines12
ROPs16
Texture Units16
Texture Max Size4096x4096
FSAA2X / 4X / 8X / 16X
SlotPCI-Express


RivaTuner Report:


$ffffffffff ----------------------------------------------------------------
$ffffffffff Display adapter information
$ffffffffff ----------------------------------------------------------------
$0000000000 Description               : NVIDIA GeForce 7600 GS (NGOHQ.com)
$0000000001 Vendor ID                 : 10de (NVIDIA)
$0000000002 Device ID                 : 0392
$0000000003 Location                  : bus 7, device 0, function 0
$0000000004 Bus type                  : PCIE
$000000000f PCIE link width           : 16x supported, 16x selected
$0000000009 Base address 0            : fd000000 (memory range)
$000000000a Base address 1            : d0000000 (memory range)
$000000000b Base address 2            : none
$000000000c Base address 3            : fc000000 (memory range)
$000000000d Base address 4            : none
$000000000e Base address 5            : 0000ec00 (I/O range)

$ffffffffff ----------------------------------------------------------------
$ffffffffff NVIDIA specific display adapter information
$ffffffffff ----------------------------------------------------------------
$0100000000 Graphics core             : NV4B/G73 revision A2 (12pp,5vp)
$0100000001 Hardwired ID              : 0392 (ROM strapped to 0392)
$0100000002 Memory bus                : 128-bit
$0100000003 Memory type               : DDR2 (RAM configuration 02)
$0100000004 Memory amount             : 262144KB
$0100000100 Core clock domain 0       : 450.000MHz
$0100000101 Core clock domain 1       : 450.000MHz
$0100000102 Core clock domain 2       : 450.000MHz
$0100000006 Memory clock              : 398.250MHz (796.500MHz effective)
$0100000007 Reference clock           : 27.000MHz
$ffffffffff ----------------------------------------------------------------
$ffffffffff NVIDIA VGA BIOS information
$ffffffffff ----------------------------------------------------------------
$1100000000 Title                     : GV-NX76G256D-RH F4
$1100000002 Version                   : 5.73.22.16.02
$1100000100 BIT version               : 1.00
$1100000200 Core clock                : 400MHz
$1100000201 Memory clock              : 400MHz
$1100010000 Performance level 0       : 450MHz/400MHz/1.05V/100%
$1100020000 VID bitmask               : 00000000b
$1100020100 Voltage level 0           : 1.05V, VID 00000000b
$1100030001 Core thermal compensation : 7°C
$1100030002 Core thermal threshold    : 125°C/115°C/110°C
$1100030003 Ambient thermal threshold : 120°C/110°C
$1100030004 Thermal diode gain        : 0.044°C
$1100030005 Thermal diode offset      : -240.880°C

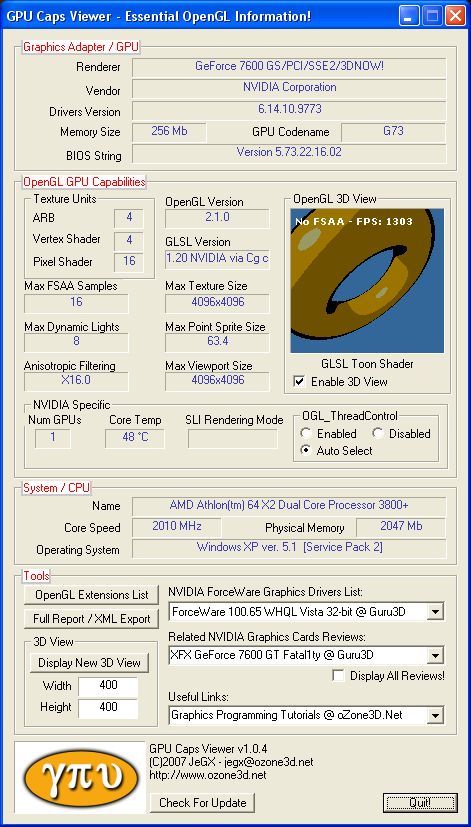

GPU Caps Viewer:

GPU Caps Viewer

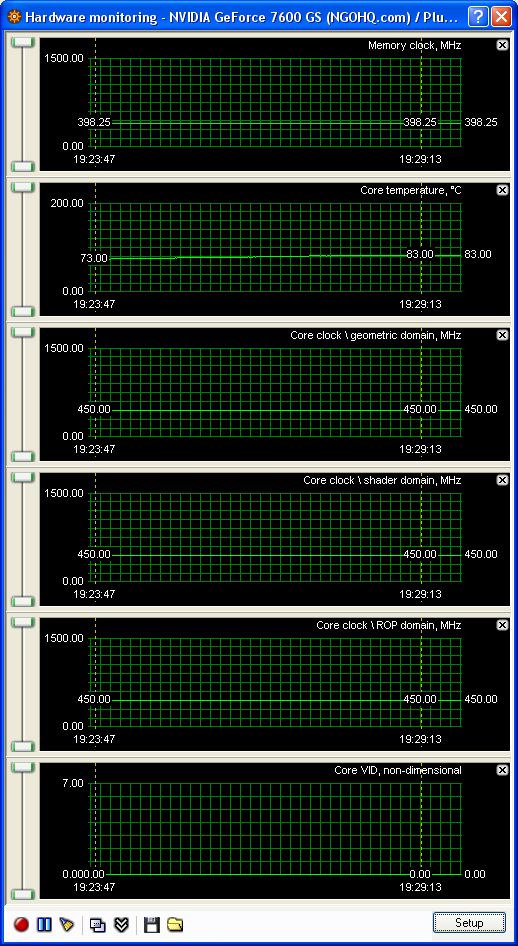

Here is the parameters evolution during the running of the Soft Shadows Benchmark in windowed stability mode:

GIGABYTE NVIDIA GeForce 7600 GS

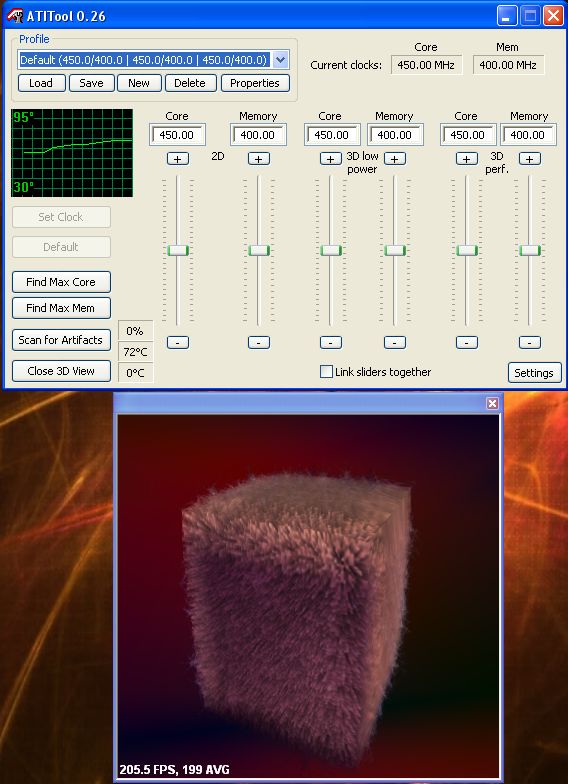

ATITool:

  • Core Clock: 450MHz
  • Memory Clock: 400MHz
GIGABYTE NVIDIA GeForce 7600 GS


NVIDIA nTune:

GIGABYTE NVIDIA Geforce 7600GS
