GIGABYTE Geforce 6600 GT - GPU NV43

Last Update: January 7, 2006


» Back To GPU Database


1 - 6600 GT: Images

2 - 6600 GT: Features

3 - 6600 GT: Benchmarks

4 - 6600 GT: Links

5 - 6600 GT: OpenGL Extensions List




1 - 6600 GT: Images

Source: JeGX - oZone3D.Net

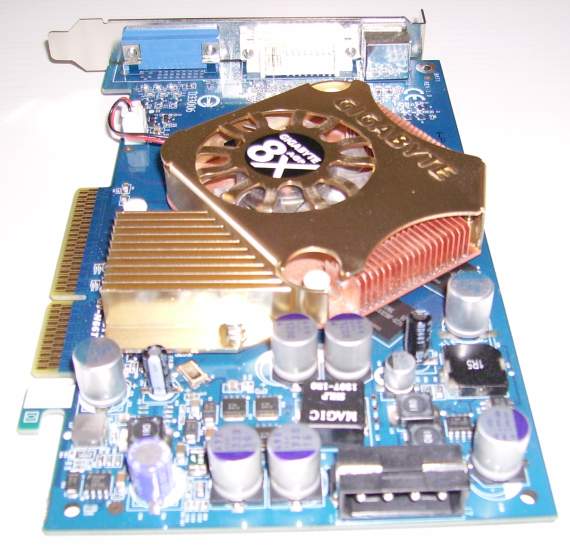

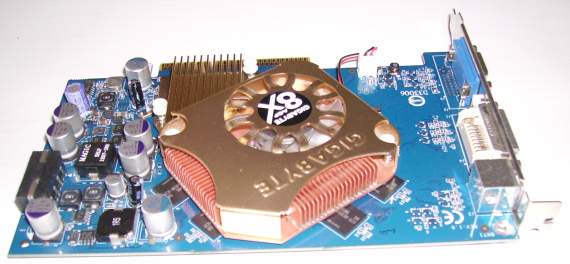

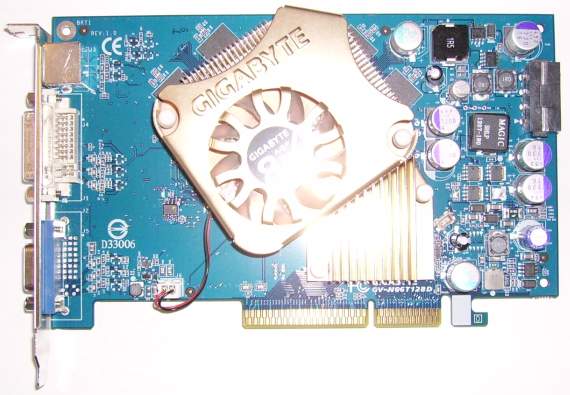

Gigabyte nVidia Geforce 6600 GT

Gigabyte nVidia Geforce 6600 GT

Gigabyte nVidia Geforce 6600 GT

Gigabyte nVidia Geforce 6600 GT


2 - 6600 GT: Features


GPUNV43
GPU Frequency500 MHz
Memory Frequency450 MHz
Memory TypeGDDR3
Memory Size128M
Vertex Pipelines3
Pixel Pipelines8
Vertex Shader Model3.0
Pixel Shader Model3.0
ROPs8
Texture Units16
Texture Max Size4096x4096
Max Anisotropic Value16.0
SlotAGP


3 - 6600 GT: Benchmarks


Soft Shadows OpenGL Benchmark
[ DOWNLOAD: Soft Shadows Benchmark Page ]

GIGABYTE Geforce 7900 GS - Soft Shadows Benchmark - Branching: OFF

GIGABYTE Geforce 7900 GS - Soft Shadows Benchmark - Branching: OFF



Suface Deformer OpenGL Benchmark
[ DOWNLOAD: Surface Deformer Benchmark Page ]

GIGABYTE nVidia Geforce 6600 GT - Surface Deformer Score




4 - 6600 GT: Useful Links


4 - 6600GT: OpenGL Extensions

Number of Extensions: 139 - Forceware 96.89

You can use the HardwareInfo to get the OpenGL extensions list.

  • GL_ARB_color_buffer_float
  • GL_ARB_depth_texture
  • GL_ARB_draw_buffers
  • GL_ARB_fragment_program
  • GL_ARB_fragment_program_shadow
  • GL_ARB_fragment_shader
  • GL_ARB_half_float_pixel
  • GL_ARB_imaging
  • GL_ARB_multisample
  • GL_ARB_multitexture
  • GL_ARB_occlusion_query
  • GL_ARB_pixel_buffer_object
  • GL_ARB_point_parameters
  • GL_ARB_point_sprite
  • GL_ARB_shadow
  • GL_ARB_shader_objects
  • GL_ARB_shading_language_100
  • GL_ARB_texture_border_clamp
  • GL_ARB_texture_compression
  • GL_ARB_texture_cube_map
  • GL_ARB_texture_env_add
  • GL_ARB_texture_env_combine
  • GL_ARB_texture_env_dot3
  • GL_ARB_texture_float
  • GL_ARB_texture_mirrored_repeat
  • GL_ARB_texture_non_power_of_two
  • GL_ARB_texture_rectangle
  • GL_ARB_transpose_matrix
  • GL_ARB_vertex_buffer_object
  • GL_ARB_vertex_program
  • GL_ARB_vertex_shader
  • GL_ARB_window_pos
  • GL_ATI_draw_buffers
  • GL_ATI_texture_float
  • GL_ATI_texture_mirror_once
  • GL_S3_s3tc
  • GL_EXT_texture_env_add
  • GL_EXT_abgr
  • GL_EXT_bgra
  • GL_EXT_blend_color
  • GL_EXT_blend_equation_separate
  • GL_EXT_blend_func_separate
  • GL_EXT_blend_minmax
  • GL_EXT_blend_subtract
  • GL_EXT_compiled_vertex_array
  • GL_EXT_Cg_shader
  • GL_EXT_depth_bounds_test
  • GL_EXT_draw_range_elements
  • GL_EXT_fog_coord
  • GL_EXT_framebuffer_blit
  • GL_EXT_framebuffer_multisample
  • GL_EXT_framebuffer_object
  • GL_EXT_gpu_program_parameters
  • GL_EXT_multi_draw_arrays
  • GL_EXT_packed_depth_stencil
  • GL_EXT_packed_pixels
  • GL_EXT_pixel_buffer_object
  • GL_EXT_point_parameters
  • GL_EXT_rescale_normal
  • GL_EXT_secondary_color
  • GL_EXT_separate_specular_color
  • GL_EXT_shadow_funcs
  • GL_EXT_stencil_two_side
  • GL_EXT_stencil_wrap
  • GL_EXT_texture3D
  • GL_EXT_texture_compression_s3tc
  • GL_EXT_texture_cube_map
  • GL_EXT_texture_edge_clamp
  • GL_EXT_texture_env_combine
  • GL_EXT_texture_env_dot3
  • GL_EXT_texture_filter_anisotropic
  • GL_EXT_texture_lod
  • GL_EXT_texture_lod_bias
  • GL_EXT_texture_mirror_clamp
  • GL_EXT_texture_object
  • GL_EXT_texture_sRGB
  • GL_EXT_timer_query
  • GL_EXT_vertex_array
  • GL_HP_occlusion_test
  • GL_IBM_rasterpos_clip
  • GL_IBM_texture_mirrored_repeat
  • GL_KTX_buffer_region
  • GL_NV_blend_square
  • GL_NV_copy_depth_to_color
  • GL_NV_depth_clamp
  • GL_NV_fence
  • GL_NV_float_buffer
  • GL_NV_fog_distance
  • GL_NV_fragment_program
  • GL_NV_fragment_program_option
  • GL_NV_fragment_program2
  • GL_NV_framebuffer_multisample_ex
  • GL_NV_half_float
  • GL_NV_light_max_exponent
  • GL_NV_multisample_filter_hint
  • GL_NV_occlusion_query
  • GL_NV_packed_depth_stencil
  • GL_NV_pixel_data_range
  • GL_NV_point_sprite
  • GL_NV_primitive_restart
  • GL_NV_register_combiners
  • GL_NV_register_combiners2
  • GL_NV_texgen_reflection
  • GL_NV_texture_compression_vtc
  • GL_NV_texture_env_combine4
  • GL_NV_texture_expand_normal
  • GL_NV_texture_rectangle
  • GL_NV_texture_shader
  • GL_NV_texture_shader2
  • GL_NV_texture_shader3
  • GL_NV_vertex_array_range
  • GL_NV_vertex_array_range2
  • GL_NV_vertex_program
  • GL_NV_vertex_program1_1
  • GL_NV_vertex_program2
  • GL_NV_vertex_program2_option
  • GL_NV_vertex_program3
  • GL_NVX_conditional_render
  • GL_SGIS_generate_mipmap
  • GL_SGIS_texture_lod
  • GL_SGIX_depth_texture
  • GL_SGIX_shadow
  • GL_SUN_slice_accum
  • GL_WIN_swap_hint
  • WGL_EXT_swap_control
  • WGL_ARB_buffer_region
  • WGL_ARB_extensions_string
  • WGL_ARB_make_current_read
  • WGL_ARB_multisample
  • WGL_ARB_pbuffer
  • WGL_ARB_pixel_format
  • WGL_ARB_pixel_format_float
  • WGL_ARB_render_texture
  • WGL_ATI_pixel_format_float
  • WGL_EXT_extensions_string
  • WGL_EXT_swap_control
  • WGL_NV_float_buffer
  • WGL_NV_render_depth_texture
  • WGL_NV_render_texture_rectangle
