ASUS AMD/ATI Radeon HD 2400 PRO Silent
GPU RV610

Last Update: October 23, 2007


» Back To GPU Database



[ Index ]

Introduction | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9

»Next Page



5 - HD 2400 PRO: Features / GPU Info


GPURV610
Transistors Count180 million
Manufacturing Process65 nm
GPU Frequency525 MHz
Memory Frequency400 MHz
Memory TypeGDDR2
Memory Interface64 bits
Memory Size256Mb
Shader Model Version4.0
OpenGL Version2.1
Direct3D Version10.0
Stream Processors40
ROPs8
Texture Units16
Texture Max Size8192x8192
FSAA2X / 4X / 8X / 16X / 24X
SlotPCI-Express


RivaTuner Report:

$ffffffffff ----------------------------------------------------------------
$ffffffffff Display adapter information
$ffffffffff ----------------------------------------------------------------
$0000000000 Description               : ATI Radeon HD 2400 PRO
$0000000001 Vendor ID                 : 1002 (ATI)
$0000000002 Device ID                 : 94c3
$0000000003 Location                  : bus 7, device 0, function 0
$0000000004 Bus type                  : PCIE
$000000000f PCIE link width           : 16x supported, 16x selected
$0000000009 Base address 0            : d0000000 (memory range)
$000000000a Base address 1            : none
$000000000b Base address 2            : febf0000 (memory range)
$000000000c Base address 3            : none
$000000000d Base address 4            : 0000e000 (I/O range)
$000000000e Base address 5            : none
$ffffffffff ----------------------------------------------------------------
$ffffffffff ATI specific display adapter information
$ffffffffff ----------------------------------------------------------------
$0900000000 Graphics core             : RV610 (40sp)
$0900000002 Memory bus                : 64-bit
$0900000001 Memory type               : DDR2 SGRAM
$0900000003 Memory amount             : 256MB
$0900000004 Core clock                : 526.500MHz
$0900000005 Memory clock              : 400.500MHz (801.000MHz effective)
$0900000006 Reference clock           : 27.000MHz


GPU Caps Viewer:

GPU Caps Viewer

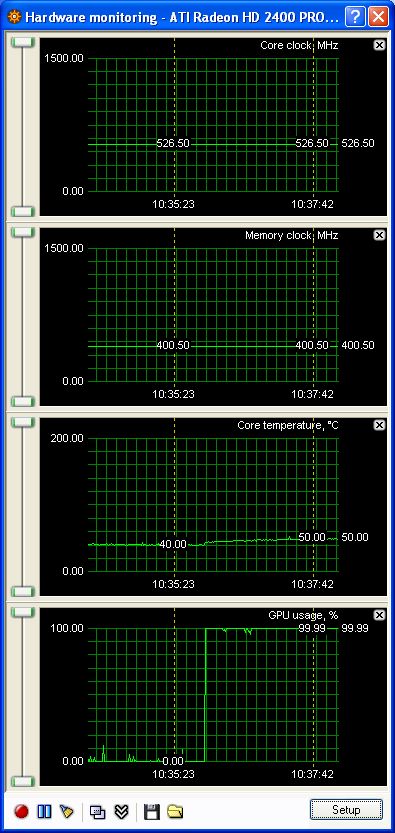

RivaTuner Monitoring (while running GPU Caps Viewer Fur Stress Test):

  • Core Clock: 526.50MHz
  • Memory Clock: 400.50MHz
RivaTuner Monitoring


GPU-Z:

GPU-Z
