Sapphire Radeon 9700 pro - GPU R300

Last Update: October 7, 2006

» Back To GPU Database

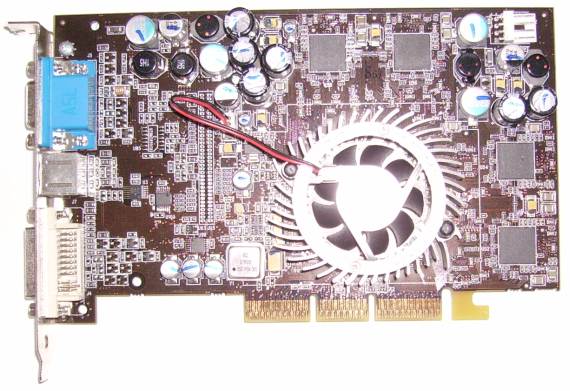

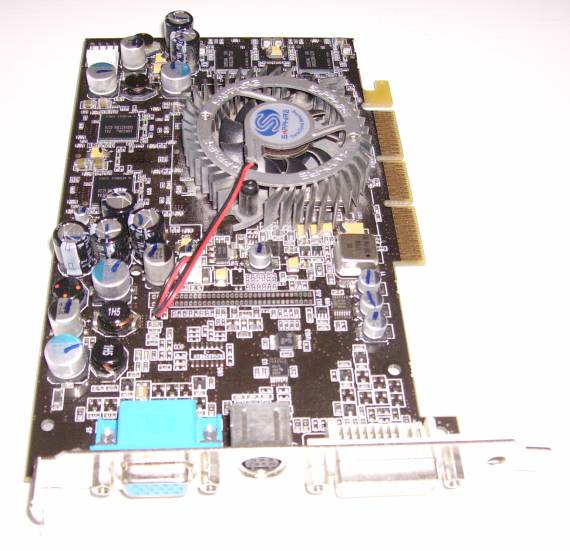

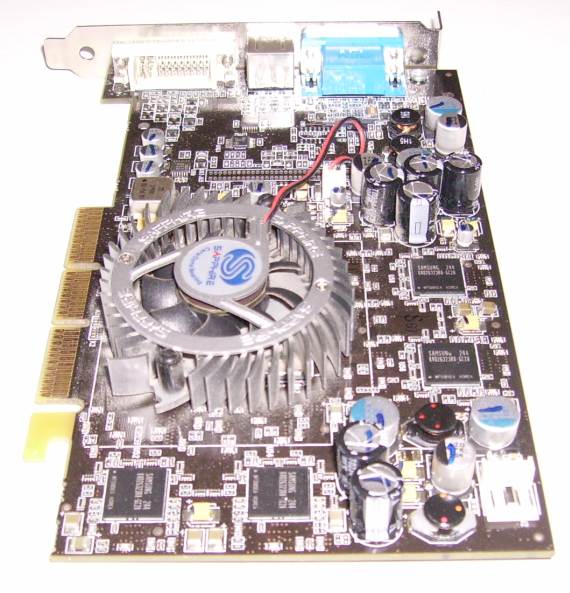

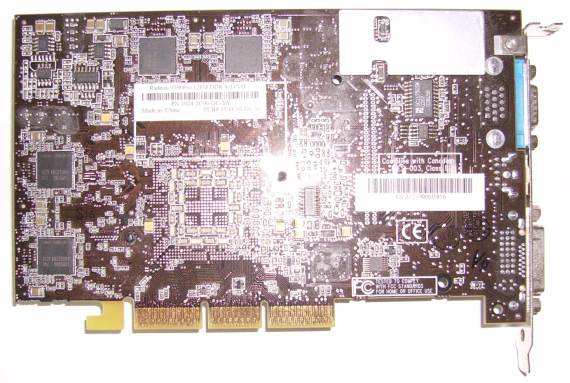

1 - Radeon 9700 Pro: Images

2 - Radeon 9700 Pro: Features

3 - Radeon 9700 Pro: Links




1 - Radeon 9800 Pro: Images

Source: JeGX - oZone3D.Net

ATI Radeon 9700 Pro

ATI Radeon 9700 Pro

ATI Radeon 9700 Pro

ATI Radeon 9700 Pro

ATI Radeon 9700 Pro



2 - Radeon 9700 Pro: Features


GPUR300
GPU Frequency325 MHz
Memory Frequency310 MHz
Memory TypeGDDR
Memory Size128M
Vertex Pipelines4
Pixel Pipelines8
Vertex Shader Model2.0
Pixel Shader Model2.0
ROPs8
Texture Units16
Texture Max Size2048x2048
Max Anisotropic Value8.0
SlotAGP


3 - Radeon 9700 Pro: Useful Links
