EVGA NVIDIA GeForce GTX 280
GPU GT200

Last Update: July 17, 2008


» Back To GPU Database



[ Index ]

Introduction | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10

»Next Page



5 - GeForce GTX 280: Features / GPU Info


GPUGT200
Transistors Count1400 million
Manufacturing Process65 nm
GPU Frequency602 MHz
Shader Processors Frequency1296 MHz
Memory Frequency1107 MHz
Memory TypeGDDR3
Memory Interface512 bits
Memory Size1024Mb
Shader Model Version4.0
OpenGL Version2.1
Direct3D Version10.0
Stream Processors240
ROPs32
Texture Units80
Texture Max Size8192x8192
FSAA2X / 4X / 8X / 16X / 32X
SlotPCI-Express
PhysXHardware accelerated


RivaTuner Report:

$ffffffffff ----------------------------------------------------------------
$ffffffffff Display adapter information
$ffffffffff ----------------------------------------------------------------
$0000000000 Description               : NVIDIA GeForce GTX 280
$0000000001 Vendor ID                 : 10de (NVIDIA)
$0000000002 Device ID                 : 05e1
$0000000003 Location                  : bus 7, device 0, function 0
$0000000004 Bus type                  : PCIE
$000000000f PCIE link width           : 16x supported, 16x selected
$0000000009 Base address 0            : fd000000 (memory range)
$000000000a Base address 1            : d0000000 (memory range)
$000000000b Base address 2            : none
$000000000c Base address 3            : fa000000 (memory range)
$000000000d Base address 4            : none
$000000000e Base address 5            : 0000ec00 (I/O range)
$ffffffffff ----------------------------------------------------------------
$ffffffffff NVIDIA specific display adapter information
$ffffffffff ----------------------------------------------------------------
$0100000000 Graphics core             : G100/GT200 revision A2 (240sp)
$0100000001 Hardwired ID              : 05e1 (ROM strapped to 05e1)
$0100000002 Memory bus                : 512-bit
$0100000003 Memory type               : DDR3 (RAM configuration 00)
$0100000004 Memory amount             : 1048576KB
$0100000100 Core clock domain 0       : 601.712MHz
$0100000101 Core clock domain 1       : 1296.000MHz
$0100000006 Memory clock              : 1107.000MHz (2214.000MHz effective)
$0100000007 Reference clock           : 27.000MHz

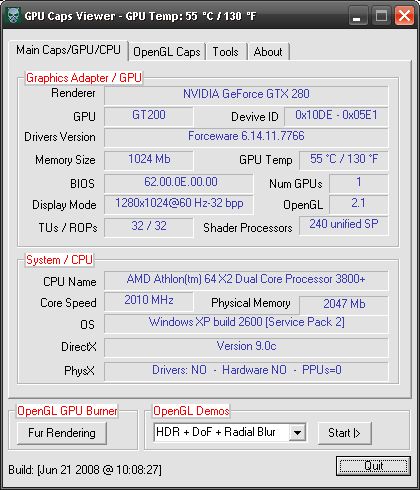

GPU Caps Viewer:

GPU Caps Viewer

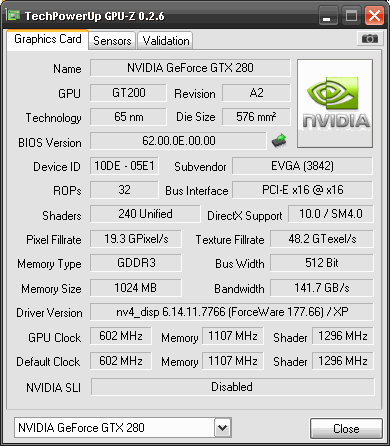

GPU-Z:

GPU-Z
