10 - X1950 XTX: Benchmarks - ArchMark

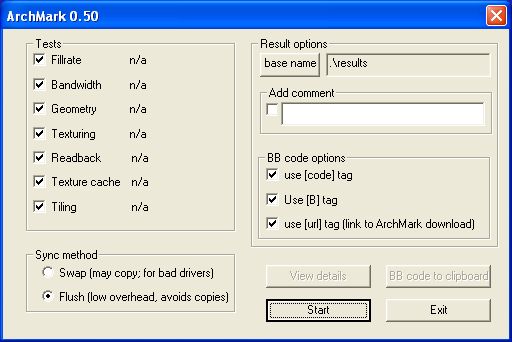

ArchMark v0.50

ArchMark Report:

ArchMark 0.50
Driver: Radeon X1950 Series x86/MMX/3DNow!/SSE2 v2.0.6287 WinXP Release
Resolution: 1024x768 @ 58.70Hz
Flushing commands, no buffer swaps
Fillrate

• 32 bits
  • Mode: R8G8B8A8 Z24 S8
  • 9.490 GPix/s color only
  • 10.234 GPix/s z only
  • 7.686 GPix/s color and z
  • 3.823 GPix/s z tested (pass), color and z
  • 110.851 GPix/s discardable by LEQUAL depth test
  • 130.474 GPix/s discardable by GEQUAL depth test
  • 6.935 GPix/s discardable by EQUAL depth test
  • 10.154 GPix/s stencil writes
  • 10.239 GPix/s discardable by EQUAL stencil test
  • stencil test passed
    • 9.492 GPix/s pure stencil updates
    • 9.676 GPix/s z fail (LEQUAL), stencil update
    • z test passed (LEQUAL)
      • 9.650 GPix/s stencil update
      • 9.707 GPix/s stencil update, z update
      • 9.836 GPix/s color replace
      • 7.734 GPix/s z update, color replace
      • 6.249 GPix/s stencil update, color replace
      • 6.236 GPix/s stencil update, z update, color replace
• 16 bits
  • Mode: R5G6B5A0 Z16 S0
  • 10.156 GPix/s color only
  • 10.048 GPix/s z only
  • 8.953 GPix/s color and z
  • 4.799 GPix/s z tested (pass), color and z
  • 39.949 GPix/s discardable by LEQUAL depth test
  • 78.794 GPix/s discardable by GEQUAL depth test
  • 10.180 GPix/s discardable by EQUAL depth test

Bandwidth
Mode: R8G8B8A8 Z24 S8

• available to buffer clears
  • 71.415 GB/s all buffers
  • 38.024 GB/s color only
  • 213.280 GB/s depth and stencil
  • 88.906 GB/s depth only
  • 9.011 GB/s stencil only
• 69.165 GB/s worst case draw bandwidth
• 184.654 MB/s burned by the RAMDAC
• 69.350 GB/s estimated physical bandwidth

Geometry
Mode: R5G6B5A0 Z16 S0

• Plain vertices
  • 211.317 MTris/s as triangle fan
  • 90.172 MTris/s as triangle list
  • 8.935 MTris/s clipped
• Vertex shading speed
  • 81.256 MTris/s lit (one directional light)
  • 53.838 MTris/s lit (one point light)
  • 24.642 MTris/s lit (eight point lights)

Texturing
Mode: R5G6B5A0 Z16 S0

• Textured fillrate
  • Bilinear filter
    • 5.554 GPix/s w 1 layers
    • 4.949 GPix/s w 2 layers
    • 3.339 GPix/s w 3 layers
    • 2.521 GPix/s w 4 layers
    • 2.020 GPix/s w 5 layers
    • 1.696 GPix/s w 6 layers
    • 1.449 GPix/s w 7 layers
    • 1.273 GPix/s w 8 layers
  • Trilinear filter
    • 4.154 GPix/s w 1 layers
    • 2.531 GPix/s w 2 layers
    • 1.707 GPix/s w 3 layers
    • 1.282 GPix/s w 4 layers
    • 1.028 GPix/s w 5 layers
    • 857.591 MPix/s w 6 layers
    • 737.401 MPix/s w 7 layers
    • 644.381 MPix/s w 8 layers

Readback
Mode: R8G8B8A8 Z24 S8

• Whole buffer
  • 36.040 MPix/s of R8G8B8A8 colors
  • 55.518 MPix/s of B8G8R8A8 colors
  • 60.768 MPix/s of R8G8B8 colors
  • 61.236 MPix/s of B8G8R8 colors
  • 62.320 MPix/s of depth data (unsigned integer)
  • 60.698 MPix/s of depth data (float)
  • 2.039 MPix/s of stencil
• 32x32 region
  • 15.185 MPix/s as R8G8B8A8
  • 15.523 MPix/s as B8G8R8A8
  • 15.767 MPix/s as R8G8B8
  • 15.671 MPix/s as B8G8R8
  • 13.337 MPix/s of depth data (unsigned integer)
  • 13.192 MPix/s of depth data (float)
  • 1.849 MPix/s of stencil

Texture cache
Mode: R8G8B8A8 Z24 S8

• 8 kiB using RGBA textures(CSV)
• 8 kiB using DXT1 textures(CSV)
• 8 kiB using DXT5 textures(CSV)

Tiling
Mode: R8G8B8A8 Z24 S8

• preferred block alignment
  • updating all buffers (CSV)
    • 4 pixels wide
    • 4 pixels high
  • in color buffer (CSV)
    • 4 pixels wide
    • 4 pixels high
  • in depth buffer (CSV)
    • 2 pixels wide
    • 2 pixels high
  • in stencil buffer (CSV)
    • 2 pixels wide
    • 2 pixels high
