Demoniak3D Chromatic Aberration Demo










Download


Chromatic Aberration demo - Executable + Source Code - zip archive - (11741k)
Release date: November 3, 2006
Update: January 15, 2008
For any bug report or feedback, please send an email to feedback [AT] ozone3d [DOT] net and add "[DEMO FEEDBACK]" to the subject.

Recommended configuration:
  • Operating System: Windows XP SP1 or SP2
  • Processor: Pentium III or AMD Athlon and up processor - 800 MHz and up.
  • Memory: 256M RAM and up
  • Graphics Controller: ATI Radeon 9700 and up (with the latest Catalyst drivers) or GeForce FX 5200 and up (with the latest Forceware drivers)
  • Resolution: 1280x1024 - 32 bits/pixel

Description

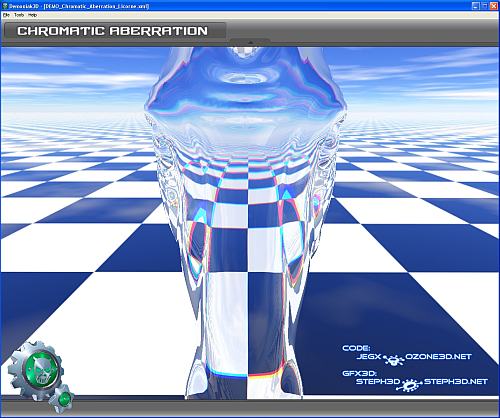

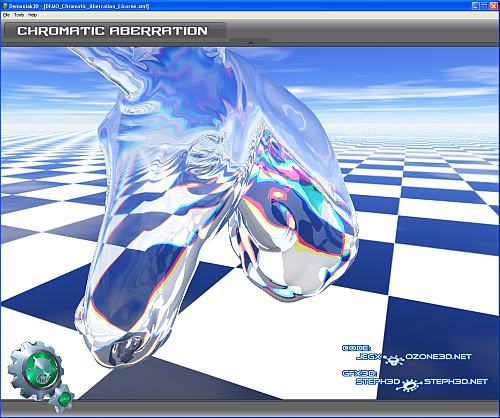

This demo shows how to implement with Demoniak3D the lighting dispersion effect also known as chromatic aberration. This demo has been adapted from the Refractive Dispersion sample provided with the nVidia SDK.

The demo uses a GLSL shader that performs the following tasks:

  • light dispersion according to the indices of refraction (IoR)
  • light reflection. The reflection code comes from the following tutorial: Cube Environment Mapping
  • light refraction. The refraction code is based on the following paper: Fresnel Reflection
  • variation of the transparent areas using a gloss map (torus demo). The code that does the job comes from the following tutorial: Gloss Maps

The source code of the demo is located in the DEMO.xml file. This file contains the GLSL shader that does the reflection / refrection effect (just search for 'chromaticAberrationShader').

Instructions for use:
This demo requires an OpenGL 1.5 compliant graphics controller. Unzip the archive and launch START_DEMO_Licorne_Unicorn.bat or START_DEMO_Torus.bat. That's all!

Demos's source codes are in the next files: DEMO_Chromatic_Aberration_Licorne.xml and DEMO_Chromatic_Aberration_Torus.xml.

You can download Demoniak3D Demo-System here: [Demoniak3D DOWNLOAD].



Author Profile


=:[CODE]:=
Author:Jérôme 'JeGX' Guinot
Country:Switzerland
Contact:jegx [at] ozone3d [dot] net
Homepage:www.ozone3d.net


=:[GFX3D]:=
Author:Stéphane 'Steph3D' Laux
Country:France
Contact:steph [at] steph3d [dot] net
Homepage:www.steph3d.net
